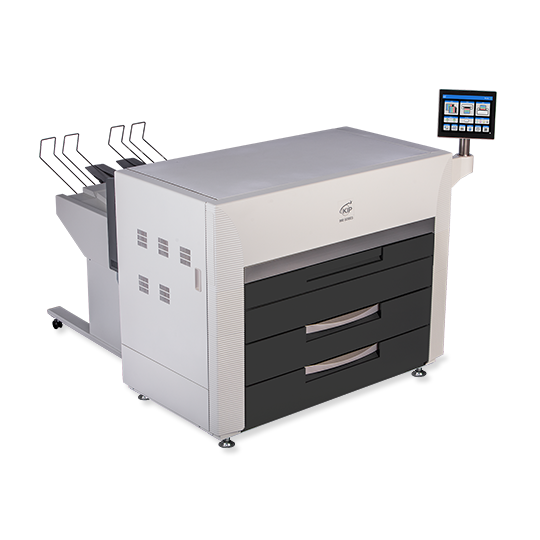

KIP 990C

KIP 990C

$77,200.00 USD
$77,200.00 USD
Sale Sold out

The KIP 990C is designed for print centers that require high demand output, precise imaging and bold, expressive color fidelity. It produces amazingly vibrant colors, subtle tints and hues with unsurpassed color stability from the first to final print.

  • High demand multifunction production print system with KIP 2300 CCD production scanner
  • 4 x 650 foot rolls
  • 7,800 square foot media capacity
  • 7,200 square feet per hour black & white productivity
  • 5,760 square feet per hour color productivity

          View full details

          Product Specifications

          KIP 990C

          Product Description

          The KIP 990C offers a comprehensive wide format solution for a range of printing tasks spanning from architectural, engineering and construction documents — to maps, posters and signs — without sacrificing quality or performance.

          General

          DESCRIPTION
          4 Roll High Demand Color Production

          TYPE
          LED Array Electro photography with organic photoconductor (OPC drum) Contact Development using non magnetic mono-component toner

          CONFIGURATIONS
          Multi-function system (print/copy/scan)

          SPEED
          Up to 7,200 sq. ft (670 m2) in single pass black or 5,760 sq. ft. (535 m2) per hour in color regardless of image type or print resolution

          WARM UP TIME
          Instant from standby, less than 4 minutes from power on

          TONER
          Four color (CMYK), dry toner, print images are UV resistant and waterproof

          INPUT POWER
          2x 208-240VAC +6%/-10% 50/60Hz, 16 A

          POWER CONSUMPTION
          Printing: 2.4 kWh (Average)
          Ready: 630 W (Average)
          Sleep: Mode 3.4 W

          ACOUSTIC NOISE
          < 65 db (printing), < 60 db (standby)

          OZONE
          < 0.05 ppm (average of 8 hours)

          DIMENSION
          60” x 43” x 48”

          WEIGHT
          1,212 lbs

          Printer

          PRINT RESOLUTION
          600 x 1,800 dpi

          PAPER CAPACITY
          7,800 sq ft / 724 sq m ( 4 rolls + cut sheet )

          OUTPUT SIZES WIDTH (roll media)
          11” - 36” / 297 mm - 914 mm (3” Core)

          OUTPUT SIZES LENGTH (roll media)
          8.5” / 210 mm minimum, 210’ / 64 m maximum

          PAPER WEIGHT (roll media)
          Bond Paper: up to 24 lb.
          Specialty Bond Paper: up to 40 lb.
          Polyester Film Media: up to 4 mil
          Banner Media: up to 10 mil.

          SHEET BYPASS
          Up to 40 lbs. / 150 gsm bond
          Maximum sheet size: 36”/ 914 mm x manageable length
          Minimum sheet size: 11” x 17” / A3

          MEDIA TYPES
          Bond Paper, Specialty Bond Paper, Polyester Film, Banner Media

          Controller

          CONTROLLER TYPE
          System K Embedded, Windows Standard Embedded 7 – 64 bit, i7 Quad Cord (min)

          MEMORY
          16 GB (min)

          HARD DRIVE
          256 SSD (min)

          COMPATIBLE FILE FORMATS
          Raster Color: TIFF, JPG, JPG2000, PNG, BMP, GIF, TGA, RLE/RLC
          Vector Color/B&W: HPGL, HPGL/2, HP-RTL, Postscript (PS/EPS), PDF, Autodesk DWF, Multipage PDF & DWF
          Raster B&W: TIFF Group 3 & 4, CALS Group 4, Grayscale TIFF
          Vector B&W: Calcomp 906/907

          Scanner

          RESOLUTION
          600 dpi (optical)

          ORIGINAL
          Single Sheet, image viewable/face up

          WIDTHS
          8.5” - 36” / 210 mm - 914 mm

          LENGTH
          8.5” – 19.7’ / 210 mm – 6 m
