KIP

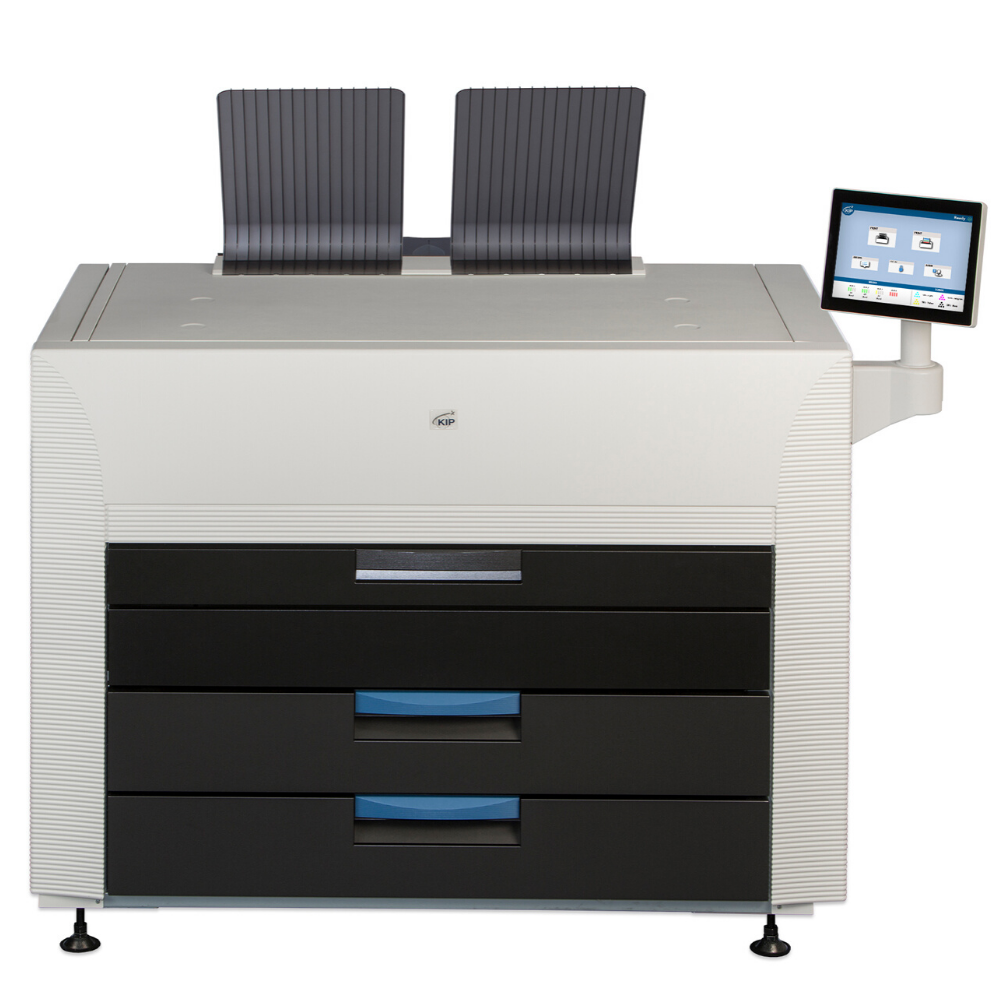

KIP 870

KIP 870

Regular price $22,059.00 USD
Regular price Sale price $22,059.00 USD
Sale Sold out

MSRP: $33,768.00

The KIP 870 workgroup and departmental print system is designed for high demand project requirements, with outstanding performance and reliability. High resolution color and black & white mixed set production with built-in cost efficiency reporting.

  • 4 Roll Network Printer
  • 12” Smart System K Touchscreen
  • Standard Front Stacking
  • Optional Rear Stacking or KIPFold
  • KIP System K Print Management Suite
  • Windows and AutoCAD Drivers
  • Workflow Automation


      View full details

      Product Specifications

      KIP 870

      Product Description

      The KIP 870 workgroup and departmental print system is designed for high demand project requirements, with outstanding performance and reliability. High resolution color and black & white mixed set production with built-in cost efficiency reporting.

      General

      DESCRIPTION
      4 Roll Workgroup Color Print System

      TYPE
      LED Array Electro photography with organic photoconductor (OPC drum) Contact Development using non magnetic mono-component toner

      CONFIGURATIONS
      Printer

      SPEED
      Up to 3,600 sq. ft (334 m2) in single pass black or 2,880 sq. ft. (268 m2) per hour in color regardless of image type or print resolution

      WARM UP TIME
      Instant from standby, less than 6 minutes from power on

      TONER
      Four color (CMYK), dry toner, print images are UV resistant and waterproof

      INPUT TOWER
      208-240VAC +6%/-10% 50/60Hz, 16 A

      POWER CONSUMPTION
      Ready: 0.6 kWh
      Printing: 1.9 kWh
      Warm Up: 3.4 kWh
      Sleep Mode: 3 Wh

      ACOUSTIC NOISE
      < 65 db Printing

      OZONE
      < 0.05 ppm (average of 8 hours)

      DIMENSION
      60” x 43” x 48”

      WEIGHT
      1,170 lbs

      Printer

      PRINT RESOLUTION
      600 x 2,400 dpi

      PAPER CAPACITY
      3,000 sq ft / 280 sq m ( 2 rolls + cut sheet )
      6,000 sq ft / 560 sq m ( 4 rolls + cut sheet )

      OUTPUT SIZES WIDTH (roll media)
      11” - 36” / 297 mm - 914 mm (3” Core)

      OUTPUT SIZES LENGTH (roll media)
      8.5” / 210 mm minimum, 210’ / 64 m maximum

      PAPER WEIGHT (roll media)
      Bond: 18 – 40 lb / 67 – 150 gsm,
      Film: 3 – 4 mil Double Matte Polyester
      Tracing: 18 – 20 lb / 67 – 75 gsm

      SHEET BYPASS
      Up to 40 lbs. / 150 gsm bond
      Maximum sheet size 36”/ 914 mm x manageable length
      Minimum sheet size 11” x 17” / A3

      MEDIA TYPES
      Bond Paper: Economical Bond, Standard Bond
      Specialty Bond paper: Presentation Bond, Heavy Weight Bond
      Polyester Film: 3 mil Clear, 3 mil Double Matte, 4 mil White Opaque
      Banner Media: Fusion Soft Polyester

      Controller

      CONTROLLER TYPE
      System K Embedded, Windows Standard Embedded 7 – 64 bit, i5 Quad Cord (min)

      MEMORY
      4 GB (min)

      SOLID STATE DRIVE
      320 GB minimum unlimited upgrade

      COMPATIBLE FILE FORMATS
      Raster Color: TIFF, JPG, JPG2000, PNG,
      BMP, GIF, TGA, RLE/RLC
      Vector Color/B&W: HPGL, HPGL/2, HP-RTL,
      Postscript (PS/EPS), Adobe PDF, Autodesk DWF,
      Multipage PDF & DWF
      Raster B&W: TIFF Group 3 & 4, CALS Group 4,
      Grayscale TIFF
      Vector B&W: Calcomp 906/907

      Scanner

      SCAN RESOLUTION
      600 dpi (optical)

      ORIGINAL
      Single Sheet, image viewable/face up

      WIDTH
      8.5” - 36” / 210 mm - 914 mm

      LENGTH
      8.5” – 19.7’ / 210 mm – 6 m
