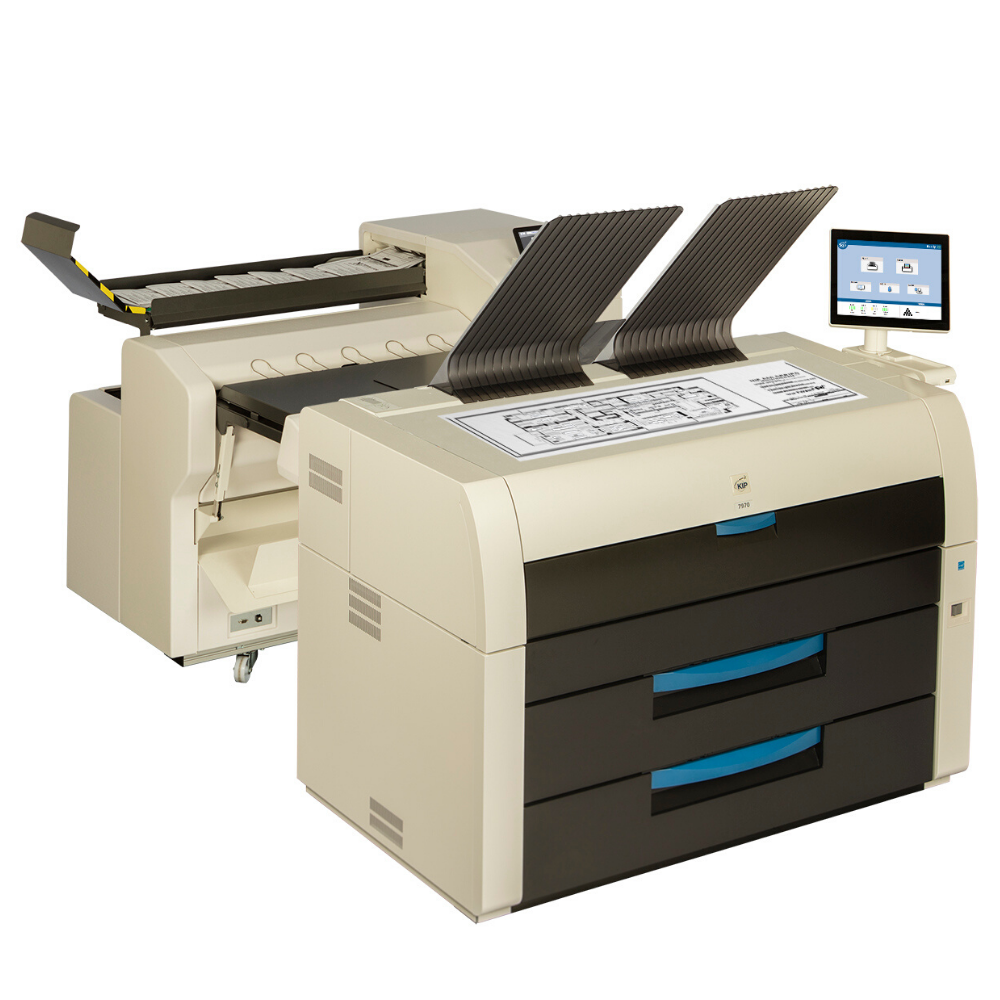

KIP 7994 G 14D

KIP 7994 G 14D

$45,445.00 USD
$45,445.00 USD
Sale Sold out

The KIP 7994 14D is the most productive black-and-white print system in its class, delivering cost effective operation, increased hourly productivity, daily reliability and long term performance that makes this system the perfect solution for centralized and decentralized production environments.

  • Color Multi-Touch Controls
  • 14 ‘D’ / ‘A1’ Size Prints per Minute
  • 4 Integrated Media Rolls
  • Integrated Touchscreen with Advanced User Management
  • PC & Web Based Submission Tools

        View full details

        Product Specifications

        KIP 7994 G 14D

        Product Description

        The KIP 79 Series print systems accelerate print production possibilities with consistent speed productivity. High Definition Print Technology delivers rich, expressive black density with advanced greyscale and fine line enhancement.

        General

        DESCRIPTION
        4 Roll BW Production System with CCD Color Scanner and Top Stacking (Dual Footprint)

        TYPE
        Electrophotography (LED) with organic photoconductor (OPC)
        and closed toner system

        RANGE OF PRODUCTIVITY
        14 D per minute / 840 prints per hour

        WARM UP TIME
        Less than 2 minutes from standby

        CONFIGURATIONS
        Printer

        ROLLS
        4 Rolls

        OUTPUT DELIVERY
        Top / Optional Rear

        DIMENSIONS
        67” (w) x 33” (d) x 59” (h)

        WEIGHT
        915 lb.

        ELECTRICAL REQUIREMENTS
        220V-240V +6% or -10%, 50/60Hz, 15A

        POWER CONSUMPTION (STANDBY)
        1,100W

        POWER CONSUMPTION (PRINTING)
        <2,700W

        Printer

        PRINT RESOLUTION
        600 dpi x 2400 dpi

        ROLL CAPACITY
        4 Rolls

        OUTPUT SIZES WIDTH
        11" - 36"

        OUTPUT SIZES LENGTH
        20’ / 6 m (standard), 500’/150 m based on media validation

        PAPER WEIGHT
        Bond 18-24 lb., Vellum/Translucent Bond 18-20 lb., film 3.5 - 4 mil

        MEDIA TYPE
        Bond / Vellum / Film

        Controller

        CONTROLLER TYPE
        KIP System K Controller with Windows 10 Embedded

        MEMORY
        2GB DDR3 Standard - Upgradable to 4 GB

        HARD DRIVE
        Minimum 320 GB - Unlimited Upgrade

        SUPPORTED FILE TYPE
        DWF, PDF, PDF-A, HPGL 1/2, HP-RTL,
        Calcomp 906/907, CALS Group 4,
        TIFF Group 4, CIT/TG4, Grayscale TIFF,
        TIFF Packbits, PNG, JPEG

        Scanner

        SCANNER TYPE
        CIS / CCD

        SCAN RESOLUTION
        600 dpi

        SCAN FORMAT
        TIFF, Multipage TIFF, PDF,
        PDF-A, Multipage PDF, DWF, JPEG

        SCAN DESTINATION
        Local USB (removable media), Mailboxes (local),
        FTP, SMB Cloud: Google Drive/Dropbox/Box/OneDrive/SharePoint

        ORIGINAL SIZE WIDTH
        11" - 36" / 210 mm to 914 mm

        ORIGINAL THICKNESS
        0.05 mm - 1.60 mm (image quality over 0.25 mm not guaranteed)
