KIP 795 C

KIP 795 C

$50,848.00 USD
$50,848.00 USD
Sale Sold out

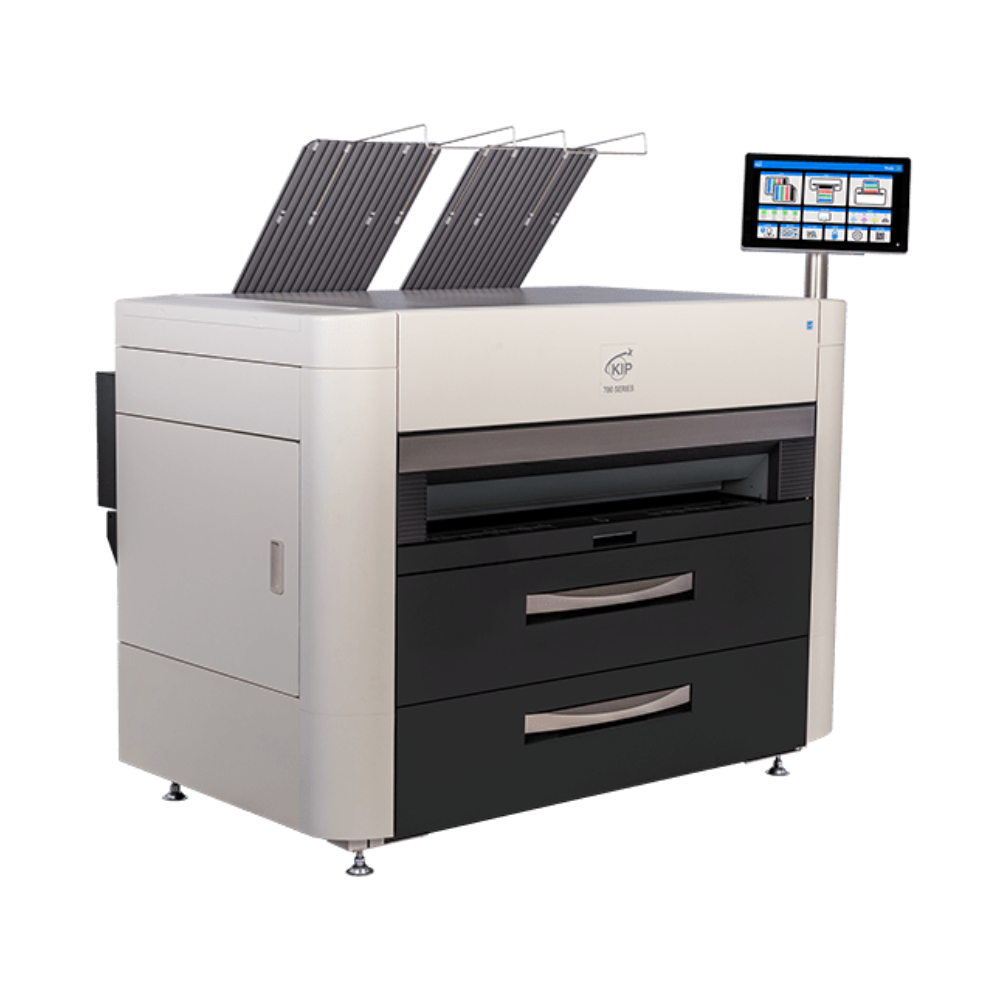

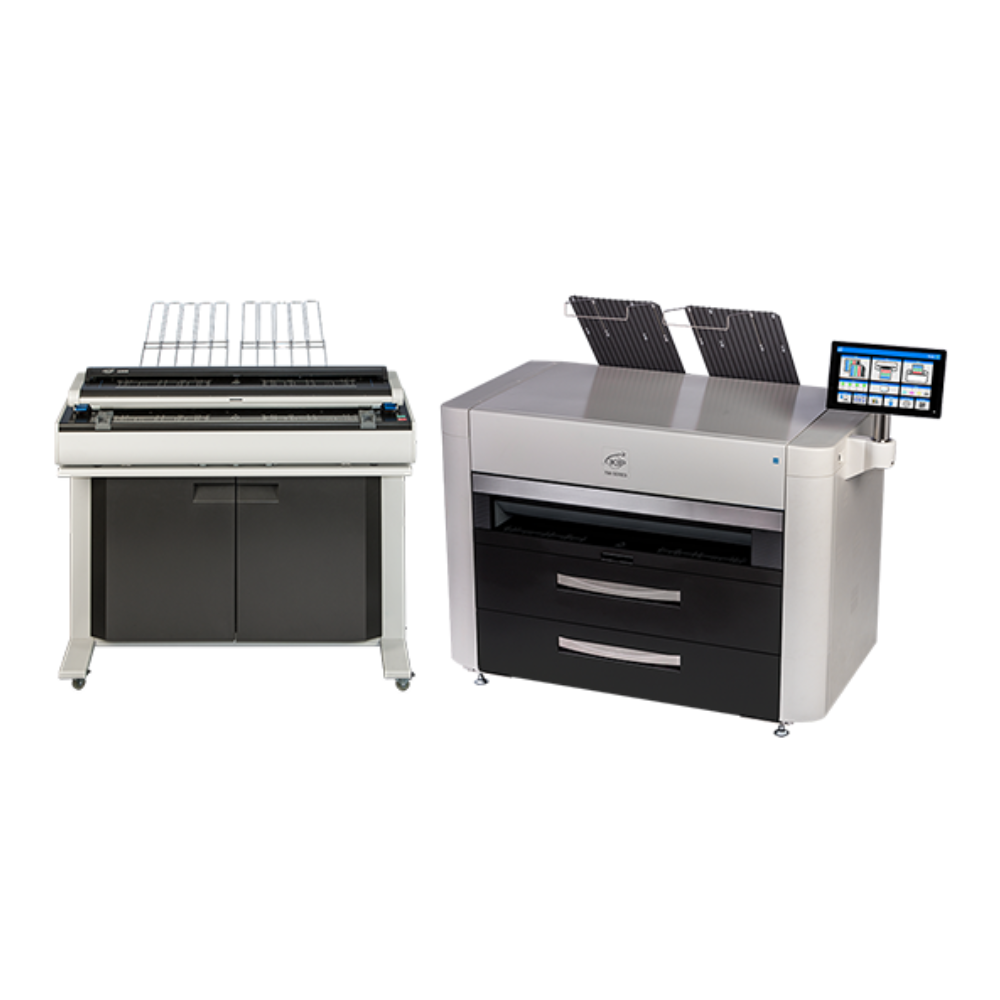

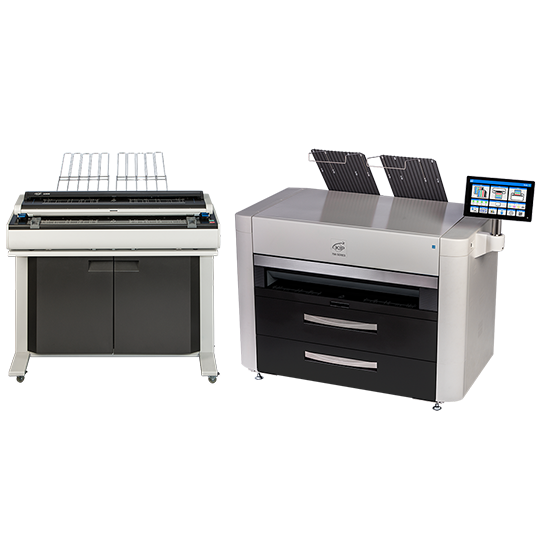

The KIP 795 C comes with the KIP 2300 Scanner & Stand and also Top Stacking & Optional Stacking for increased productivity. It is the ultimate wide format imaging solution with its Contact Control Technology (CCT).

  • 4 Roll Color Production System (12 BW/10 Color PPM)
  • Includes KIP 2300 Scanner & Stand and also Top Stacking
  • KIP System K Software is included
  • Optional rear stacking or KIPFold
  • Microsoft Windows IoT Enterprise Operating System

    View full details

    Product Specifications

    KIP 795 C

    Product Description

    The KIP 795C 4 Roll Color Production System (12 BW/10 Color PPM) come standard with the 2300 Scanner & Stand and also Top Stacking & Optional Stacking for increased productivity. It utilizes KIP Contact Control Technology (CCT), the ultimate wide format imaging solution.

    General

    DESCRIPTION
    KIP 795C 4 Roll Color Production System (12 BW/10 Color PPM) come standard with the 2300 Scanner & Stand and also Top Stacking & Optional Stacking

    TYPE
    Electrophotographic LED with organic photoconductor (OPC) utilizing CMYK dry toner
    KIP Contact Control Technology with KIP Contact Array Charging, KIP Quick Switch Technologies, KIP Image Smoothing Technologies

    SPEED
    12 BW/10 Color PPM

    WARM UP TIME
    Instant from standby

    ELECTRICAL REQUIREMENTS
    KIP 795 C: 208-240V +6%/-10%, 50/60Hz, 14A
    KIP 2300: 100-240V AC 50/60 Hz

    POWER CONSUMPTION
    Standby: 600W
    Printing: 1,500W
    Sleep: 3W

    DIMENSION
    KIP 795 C: 59” (w) x 41” (d) x 45” (h)
    KIP 2300: 55” (w) x 21” (d) x 11” (h)

    WEIGHT
    KIP 790 C: 992 lb.
    KIP 2300: 160 lb.

    Printer

    PRINT RESOLUTION
    600 dpi x 2400 dpi

    OUTPUT DELIVERY
    Standard: Top Stacking - up to 100 documents based on size & media type (default: 50 for 20# / 75gsm paper)
    Optional: Rear Stacking - up to 700 mixed size pages (based on media type and printer model)

    ROLL CAPACITY
    500’ / 150 m Rolls (4 Rolls)

    OUTPUT SIZES WIDTH
    11” - 36” / 297 mm - 914 mm (3” Core - industry standard widths)

    OUTPUT SIZES LENGTH
    19.7’ / 6m (extendable to 82’ / 25m based on media type)

    MEDIA TYPES
    Bond: up to 36" x 500'
    Specialty Bond Paper: up to 36" x 200'
    Polyester Film: up to 36" x 150'
    Banner Media: up to 36" x 200'

    Controller

    CONTROLLER TYPE
    System K Embedded, Microsoft® IoT Enterprise

    MEMORY
    4GB DDR4 Standard (Upgradable)

    SOLID STATE DRIVE
    Minimum 256 GB (Upgradable)

    SUPPORTED FILE TYPE
    PDF, PDF-A, HPGL 1/2, HP-RTL, CALS Group 4, TIFF Group 4, CIT/TG4, Grayscale TIFF, TIFF Packbits, PNG, JPEG

    Scanner

    SCANNER TYPE
    KIP 2300 CCD External (dual footprint): KIP 790 / 795

    SCAN RESOLUTION
    600 dpi

    SCAN FORMAT
    PDF, PDF-A, Multipage PDF, TIFF, Multipage TIFF, JPEG

    SCAN DESTINATION
    Local USB (removable media), Mailboxes (local), SMB, FTP, Cloud

    ORIGINAL SIZE WIDTH
    11" - 36" / 210 mm to 914 mm

    ORIGINAL THICKNESS
    0.05 mm - 1.60 mm (image quality over 0.25 mm thick cannot be guaranteed)
