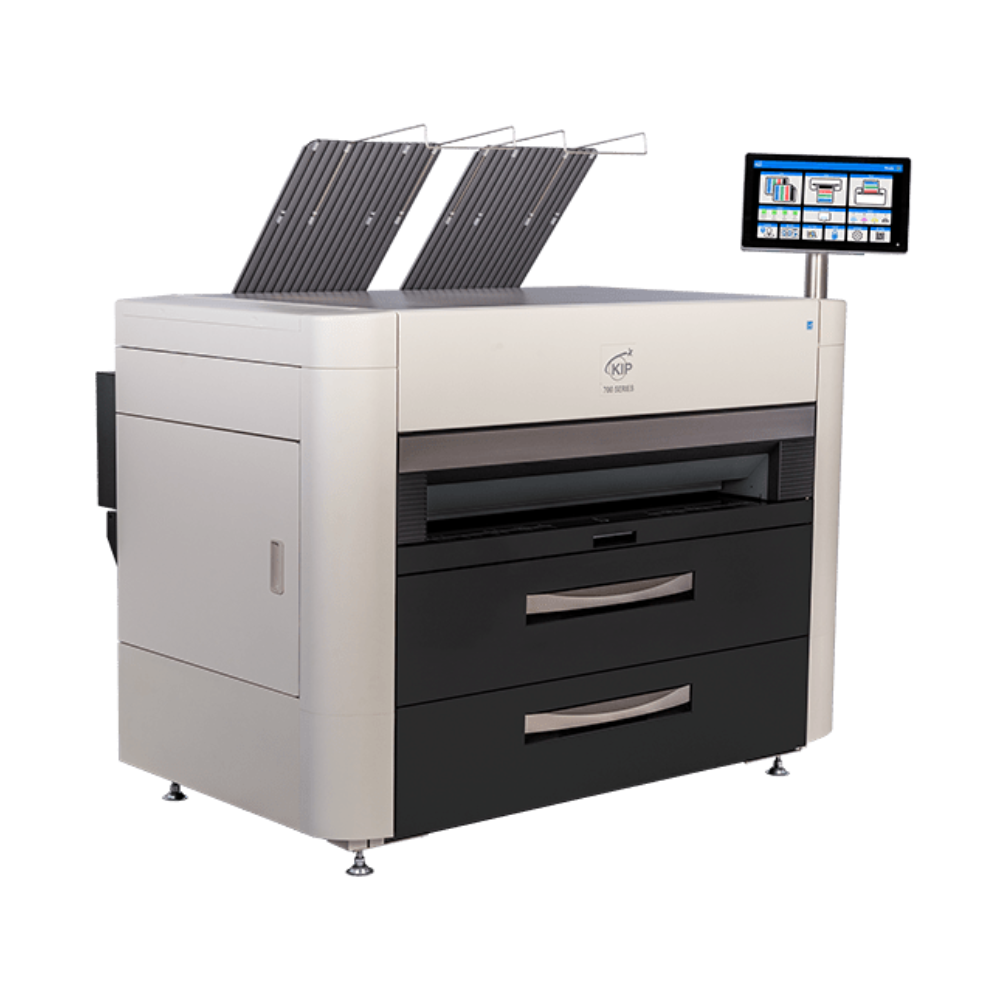

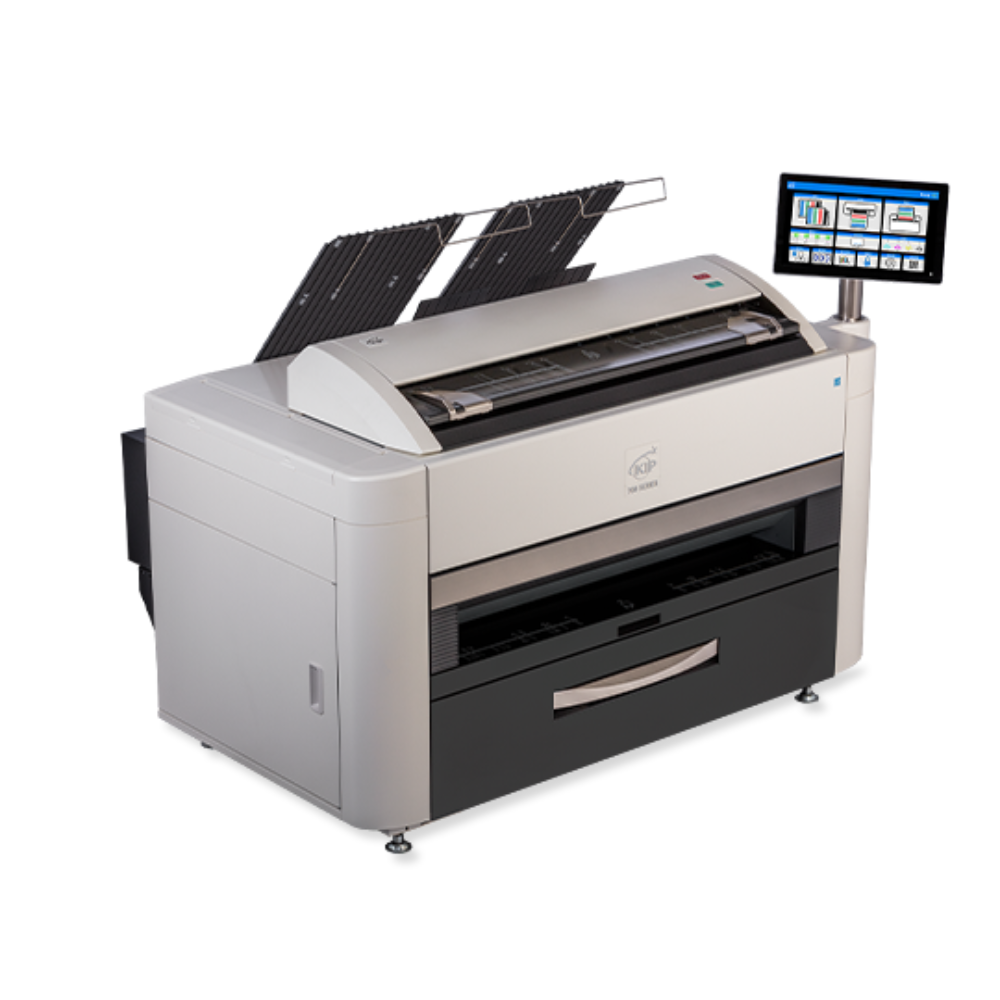

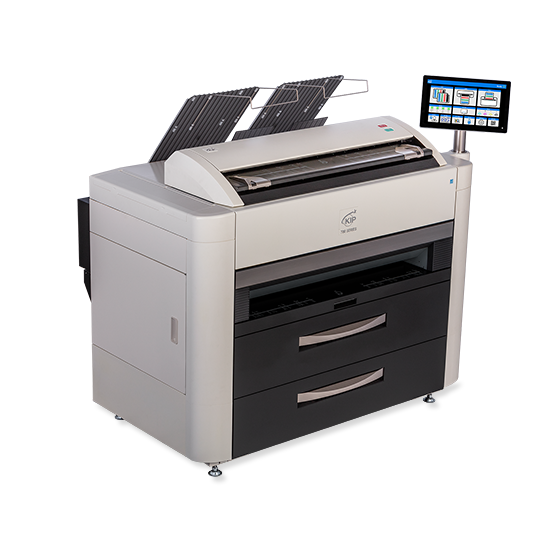

KIP 780 C

KIP 780 C

$38,543.00 USD
$38,543.00 USD
Sale Sold out

The KIP 780 C delivers impressive color output with its Contact Control Technology (CCT). Its design ensures the highest level of accuracy and precision quality in the production of every color or black & white image.

  • 4 Roll Color MFP System (8D BW / 6D Color) with Top Stacking
  • 15.6” smart tablet-like touchscreen
  • KIP System K Software is included
  • Optional rear stacking or KIPFold
  • Microsoft Windows IoT Enterprise Operating System

    View full details

    Product Specifications

    KIP 780 C

    Product Description

    The KIP 780C 4 Roll Color MFP System (8D BW / 6D Color) with Top Stacking and Optional Rear Stacking delivers impressive color output. It utilizes the Contact Control Technology (CCT) used by the KIP 700 C Series system, designed as the ultimate wide format imaging solution.

    General

    DESCRIPTION
    4 Roll Color MFP System (8D BW / 6D Color) with Top Stacking and Optional Rear Stacking

    TYPE
    Electrophotographic LED with organic photoconductor (OPC) utilizing CMYK dry toner
    KIP Contact Control Technology with KIP Contact Array Charging, KIP Quick Switch Technologies, KIP Image Smoothing Technologies

    SPEED
    8D BW/6D Color PPM

    WARM UP TIME
    Instant from standby

    ELECTRICAL REQUIREMENTS
    208-240V +6%/-10%, 50/60Hz, 14A

    POWER CONSUMPTION
    Standby: 600W
    Printing: 1,500W
    Sleep: 3W

    DIMENSION
    59” (w) x 41” (d) x 51” (h)

    WEIGHT
    1045 lb.

    Printer

    PRINT RESOLUTION
    600 dpi x 2400 dpi

    OUTPUT DELIVERY
    Standard: Top Stacking - up to 100 documents based on size & media type (default: 50 for 20# / 75gsm paper)
    Optional: Rear Stacking - up to 700 mixed size pages (based on media type and printer model)

    ROLL CAPACITY
    500’ / 150 m Rolls (4 Rolls)

    OUTPUT SIZES WIDTH
    11” - 36” / 297 mm - 914 mm (3” Core - industry standard widths)

    OUTPUT SIZES LENGTH
    19.7’ / 6m (extendable to 82’ / 25m based on media type)

    MEDIA TYPES
    Bond: up to 36" x 500'
    Specialty Bond Paper: up to 36" x 200'
    Polyester Film: up to 36" x 150'
    Banner Media: up to 36" x 200'

    Controller

    CONTROLLER TYPE
    System K Embedded, Microsoft® IoT Enterprise

    MEMORY
    4GB DDR4 Standard (Upgradable)

    SOLID STATE DRIVE
    Minimum 256 GB (Upgradable)

    SUPPORTED FILE TYPE
    PDF, PDF-A, HPGL 1/2, HP-RTL, CALS Group 4, TIFF Group 4, CIT/TG4, Grayscale TIFF, TIFF Packbits, PNG, JPEG

    Scanner

    SCANNER TYPE
    Embedded CIS: KIP 740 / 760 / 765 / 780 / 785

    SCAN RESOLUTION
    600 dpi

    SCAN FORMAT
    PDF, PDF-A, Multipage PDF, TIFF, Multipage TIFF, JPEG

    SCAN DESTINATION
    Local USB (removable media), Mailboxes (local), SMB, FTP, Cloud

    ORIGINAL SIZE WIDTH
    11" - 36" / 210 mm to 914 mm

    ORIGINAL THICKNESS
    0.05 mm - 1.60 mm (image quality over 0.25 mm thick cannot be guaranteed)
