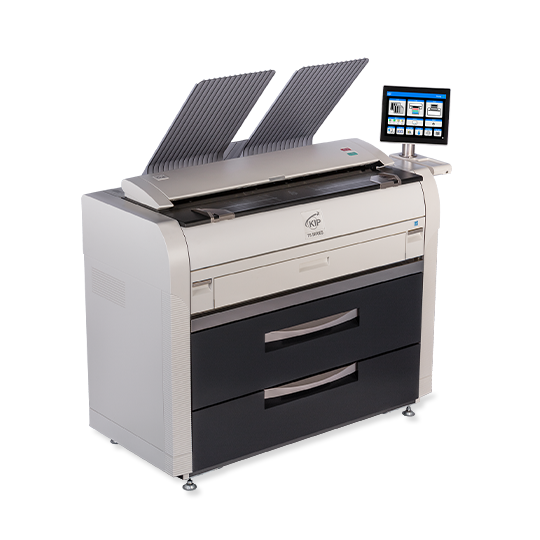

KIP 7582G 10D

KIP 7582G 10D

$33,668.00 USD
$33,668.00 USD
Sale Sold out

The KIP 7582G 10D allows you to manage daily print, scan and copy requirements. It delivers hourly productivity and configuration versatility will give your organization the confidence and flexibility to meet the demands associated with technical printing.

  • Color Multi-Touch Controls
  • 10 D Size Prints per Minute
  • 2 Integrated Media Rolls
  • Integrated Touchscreen with Advanced User Management
  • PC & Web Based Submission Tools

      View full details

      Product Specifications

      KIP 7582G 10D

      Product Description

      KIP has expanded the range of the KIP 75 Series Systems to offer innovative productivity and configuration versatility in a space saving design. The KIP 75 Series Systems have proven reliability delivering high quality, durable prints at a single touch.

      General

      DESCRIPTION
      2 Roll BW MFP System with CIS Color Scanner and Top Stacking

      TYPE
      Electrophotography (LED) with organic photoconductor (OPC)
      and closed toner system

      RANGE OF PRODUCTIVITY
      10 D per minute / 600 D prints per hour

      WARM UP TIME
      Less than 2 minutes from standby

      CONFIGURATIONS
      MFP

      ROLLS
      2 Rolls

      OUTPUT DELIVERY
      Top / Optional Rear

      DIMENSIONS
      63” (w) x 29” (d) x 63” (h)

      WEIGHT
      624 lb.

      ELECTRICAL REQUIREMENTS
      220V-240V +6% or -10%, 50/60Hz, 13A

      POWER CONSUMPTION (STANDBY)
      430W

      POWER CONSUMPTION (PRINTING)
      < 1,500W

      Printer

      PRINT RESOLUTION
      600 dpi x 2400 dpi

      ROLL CAPACITY
      2 Rolls

      OUTPUT SIZES WIDTH
      11" - 36"

      OUTPUT SIZES LENGTH
      20’ / 6 m (standard), 500’/150 m based on media validation

      PAPER WEIGHT
      Bond 18-24 lb., Vellum/Translucent Bond 18-20 lb., film 3.5 - 4 mil

      MEDIA TYPE
      Bond / Vellum / Film

      Controller

      CONTROLLER TYPE
      KIP System K Controller with Windows 7 Embedded

      MEMORY
      2GB DDR3 Standard - Upgradable to 4 GB

      HARD DRIVE
      Minimum 320 GB - Unlimited Upgrade

      SUPPORTED FILE TYPE
      DWF, PDF, PDF-A, HPGL 1/2, HP-RTL,
      Calcomp 906/907, CALS Group 4,
      TIFF Group 4, CIT/TG4, Grayscale TIFF,
      TIFF Packbits, PNG, JPEG

      Scanner

      SCANNER TYPE
      CIS / CCD

      SCAN RESOLUTION
      600 dpi

      SCAN FORMAT
      TIFF, Multipage TIFF, PDF, PDF-A,
      Multipage PDF, DWF, JPEG

      SCAN DESTINATION
      Local USB (removable media), Mailboxes (local),
      FTP, SMB Cloud: Google Drive/Dropbox/Box/OneDrive/SharePoint

      ORIGINAL SIZE WIDTH
      11" - 36" / 210 mm to 914 mm

      ORIGINAL THICKNESS
      0.05 mm - 1.60 mm (image quality over 0.25 mm not guaranteed)
