• KIP 730 C
1 1

KIP

KIP 730C

KIP 730C

$34,068.00 USD
$34,068.00 USD
Sale Sold out

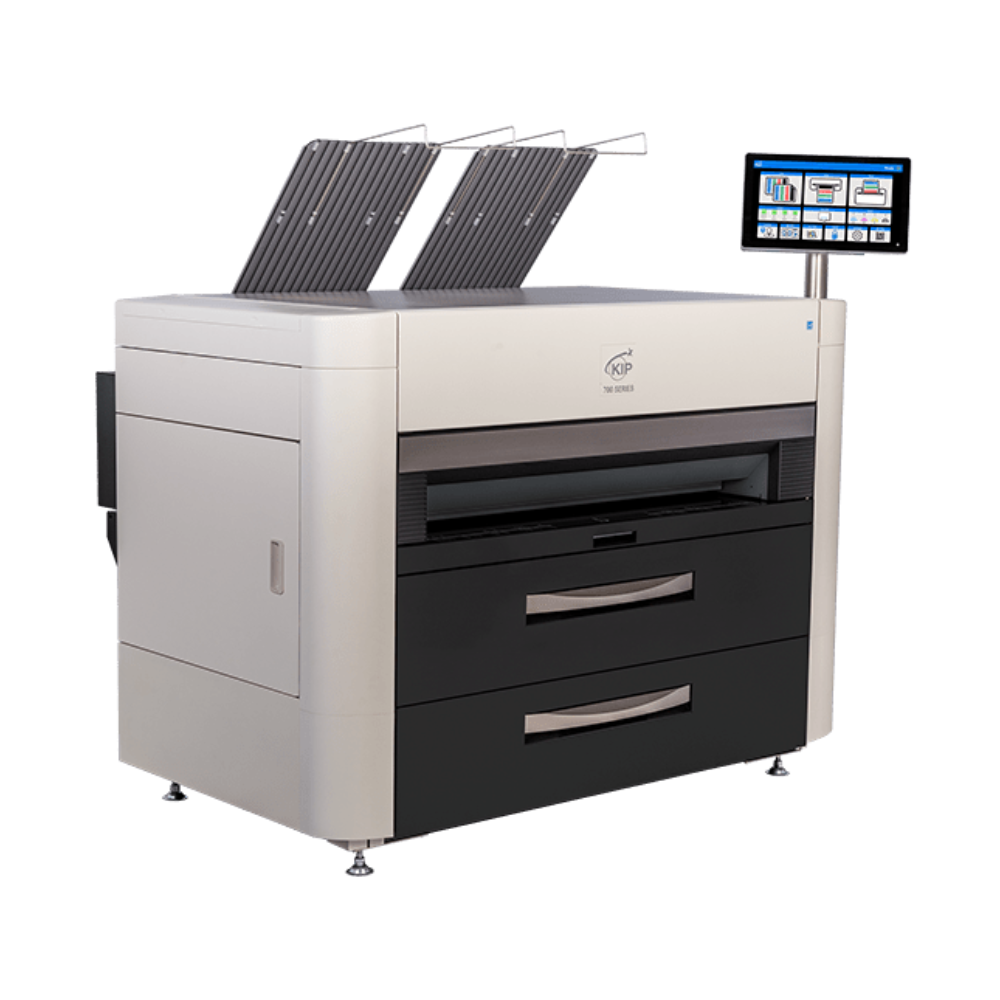

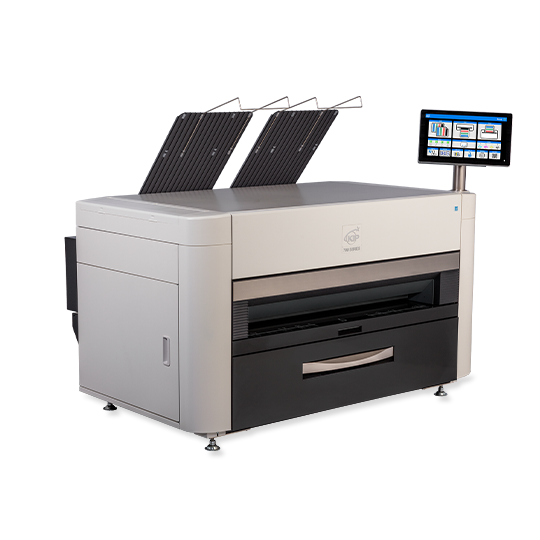

The KIP 730C is the perfect solution for all your wide format color printing needs. It utilizes KIP C Series systems Contact Control Technology (CCT), the ultimate wide format imaging solution.

  • 2 Roll Color Print System with Top Stacking (6D/A1 PPM)
  • 15.6” smart tablet-like touchscreen
  • KIP System K Software is included
  • Enhanced Top stacking
  • Microsoft Windows IoT Enterprise Operating System

    View full details

    Product Specifications

    KIP 730C

    Product Description

    The KIP 730 C 2 Roll Color Print System with Top Stacking is the perfect solution for all your wide format printing needs. It is designed to deliver the highest level of accuracy and precision quality in the production of every color or black & white image.

    General

    DESCRIPTION
    2 Roll Color Print System (6D/A1 PPM) with Top Stacking

    TYPE
    Electrophotographic LED with organic photoconductor (OPC) utilizing CMYK dry toner
    KIP Contact Control Technology with KIP Contact Array Charging, KIP Quick Switch Technologies, KIP Image Smoothing Technologies

    SPEED
    6D/A1 PPM

    WARM UP TIME
    Instant from standby

    ELECTRICAL REQUIREMENTS
    208-240V +6%/-10%, 50/60Hz, 14A

    POWER CONSUMPTION
    Standby: 600W
    Printing: 1,500W
    Sleep: 3W

    DIMENSION
    59” (w) x 41” (d) x 35” (h)

    WEIGHT
    816 lb.

    Printer

    PRINT RESOLUTION
    600 dpi x 2400 dpi

    OUTPUT DELIVERY
    Standard: Top Stacking - up to 100 documents based on size & media type (default: 50 for 20# / 75gsm paper)
    Optional: Rear Stacking - up to 700 mixed size pages (based on media type and printer model)

    ROLL CAPACITY
    500’ / 150 m Rolls (2 Rolls)

    OUTPUT SIZES WIDTH
    11” - 36” / 297 mm - 914 mm (3” Core - industry standard widths)

    OUTPUT SIZES LENGTH
    19.7’ / 6m (extendable to 82’ / 25m based on media type)

    MEDIA TYPES
    Bond: up to 36" x 500'
    Specialty Bond Paper: up to 36" x 200'
    Polyester Film: up to 36" x 150'
    Banner Media: up to 36" x 200'

    Controller

    CONTROLLER TYPE
    System K Embedded, Microsoft® IoT Enterprise

    MEMORY
    4GB DDR4 Standard (Upgradable)

    SOLID STATE DRIVE
    Minimum 256 GB (Upgradable)

    SUPPORTED FILE TYPE
    PDF, PDF-A, HPGL 1/2, HP-RTL, CALS Group 4, TIFF Group 4, CIT/TG4, Grayscale TIFF, TIFF Packbits, PNG, JPEG

    Scanner

    This feature is not available on this unit.
