KIP

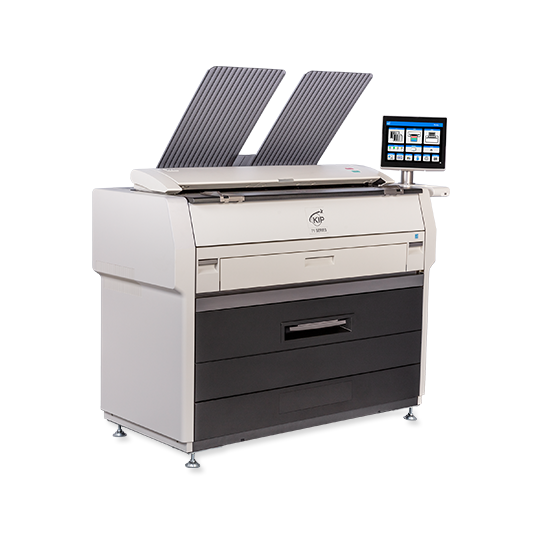

KIP 7172G 6D

KIP 7172G 6D

$22,360.00 USD
$22,360.00 USD
Sale Sold out

The KIP 7172G 6D offers innovative productivity and configuration versatility in a space saving design. It has proven reliability delivering high quality, durable prints at a single touch.

  • Color Multi-Touch Controls
  • 2 Media Rolls Capacity
  • 360 D Size Prints per Hour
  • 6 D Size Prints Per Minute
  • Integrated Touchscreen with Advanced User Management

View full details

Product Specifications

KIP 7172G 6D

Product Description

Innovative productivity and configuration versatility expands the range of the KIP 71 Series MFP systems to meet the needs of technical printing professionals.

General

DESCRIPTION
2 Roll BW MFP System with CIS Color Scanning

TYPE
Electrophotography (LED) with organic photoconductor (OPC) and closed toner system

RANGE OF PRODUCTIVITY
6 D per minute / 360 D prints per hour

WARM UP TIME
Less than 2 minutes from standby

CONFIGURATIONS
MFP

ROLLS
2 Rolls

OUTPUT DELIVERY
Top / Optional Rear

DIMENSIONS
63” (w) x 28” (d) x 59” (h)

WEIGHT
538 lb.

ELECTRICAL REQUIREMENTS
120V plus/minus 10%, 50/60Hz, 12A

POWER CONSUMPTION (STANDBY)
500W

POWER CONSUMPTION (PRINTING)
1,100W

Printer

PRINT RESOLUTION
600 dpi x 2400 dpi

ROLL CAPACITY
2 Rolls

OUTPUT SIZES WIDTH
11" - 36"

OUTPUT SIZES LENGTH
20’ / 6 m (standard), 500’/150 m based on media validation

PAPER WEIGHT
Bond 18-24 lb. Vellum/
Translucent Bond 18-20 lb., film 3.5 - 4 mil

MEDIA TYPE
Bond / Vellum / Film

Controller

CONTROLLER TYPE
KIP System K Controller with Windows 7 Embedded

MEMORY
2GB DDR3 Standard - Upgradable to 4 GB

HARD DRIVE
Minimum 320 GB - Unlimited Upgrade

SUPPORTED FILE TYPE
DWF, PDF, PDF-A, HPGL 1/2, HP-RTL,
Calcomp 906/907, CALS Group 4,
TIFF Group 4, CIT/TG4, Grayscale TIFF,
TIFF Packbits, PNG, JPEG

Scanner

SCANNER TYPE
CIS

SCAN RESOLUTION
600 dpi

SCAN FORMAT
TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, JPEG

SCAN DESTINATION
Local USB (removable media), Mailboxes (local),
FTP, SMB Cloud: Google Drive/Dropbox/Box/OneDrive/SharePoint

ORIGINAL SIZE WIDTH
11" - 36" / 210 mm to 914 mm

ORIGINAL THICKNESS
0.05 mm - 1.60 mm (image quality over 0.25 mm not guaranteed)
