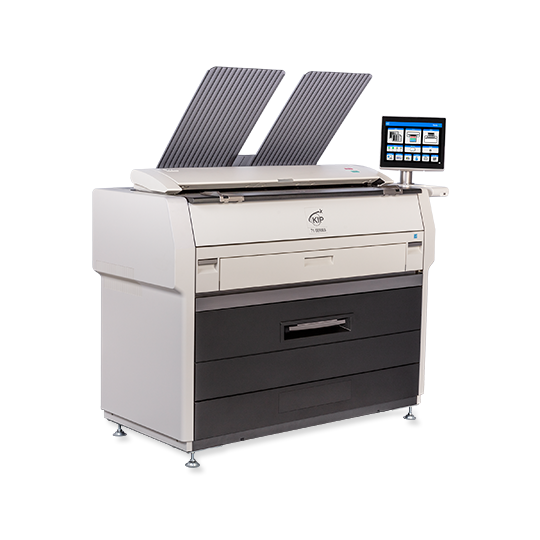

KIP 7171G 4D

Innovative productivity and configuration versatility expands the range of the KIP 71 Series MFP systems to meet the needs of technical printing professionals.

DESCRIPTION
1 Roll BW MFP System with CIS Color Scanning

TYPE
Electrophotography (LED) with organic photoconductor (OPC) and closed toner system

RANGE OF PRODUCTIVITY
4 D per minute / 240 D prints per hour

WARM UP TIME
Less than 2 minutes from standby

CONFIGURATIONS
MFP

ROLLS
1 Roll

OUTPUT DELIVERY
Top / Optional Rear

DIMENSIONS
63” (w) x 28” (d) x 59” (h)

WEIGHT
538 lb.

ELECTRICAL REQUIREMENTS
120V plus/minus 10%, 50/60Hz, 12A

POWER CONSUMPTION (STANDBY)
500W

POWER CONSUMPTION (PRINTING)
1,100W

PRINT RESOLUTION
600 dpi x 2400 dpi

ROLL CAPACITY
1 Roll

OUTPUT SIZES WIDTH
11" - 36"

OUTPUT SIZES LENGTH
20’ / 6 m (standard), 500’/150 m based on media validation

PAPER WEIGHT
Bond 18-24 lb. Vellum/
Translucent Bond 18-20 lb., film 3.5 - 4 mil

MEDIA TYPE
Bond / Vellum / Film

CONTROLLER TYPE
KIP System K Controller with Windows 7 Embedded

MEMORY
2GB DDR3 Standard - Upgradable to 4 GB

HARD DRIVE
Minimum 320 GB - Unlimited Upgrade

SUPPORTED FILE TYPE
DWF, PDF, PDF-A, HPGL 1/2, HP-RTL,
Calcomp 906/907, CALS Group 4,
TIFF Group 4, CIT/TG4, Grayscale TIFF,
TIFF Packbits, PNG, JPEG

SCANNER TYPE
CIS

SCAN RESOLUTION
600 dpi

SCAN FORMAT
TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, JPEG

SCAN DESTINATION
Local USB (removable media), Mailboxes (local),
FTP, SMB Cloud: Google Drive/Dropbox/Box/OneDrive/SharePoint

ORIGINAL SIZE WIDTH
11" - 36" / 210 mm to 914 mm

ORIGINAL THICKNESS
0.05 mm - 1.60 mm (image quality over 0.25 mm not guaranteed)
