KIP

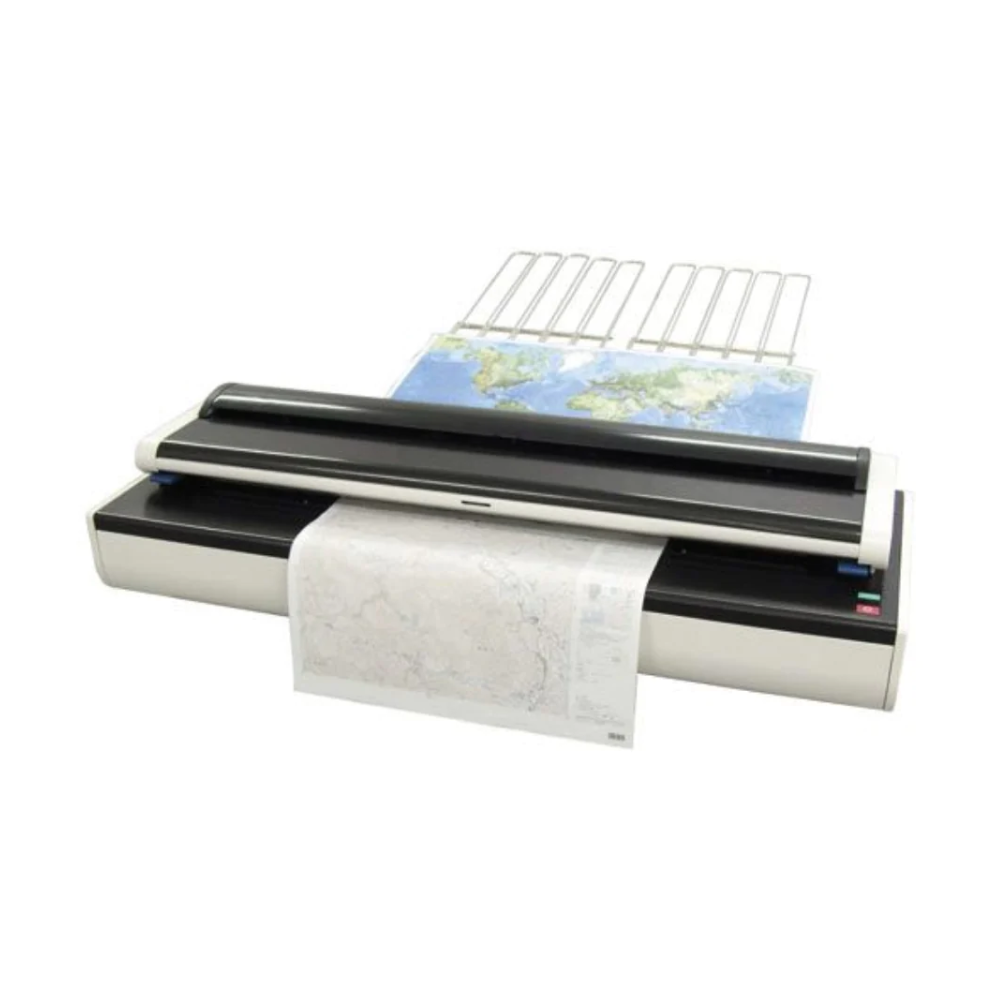

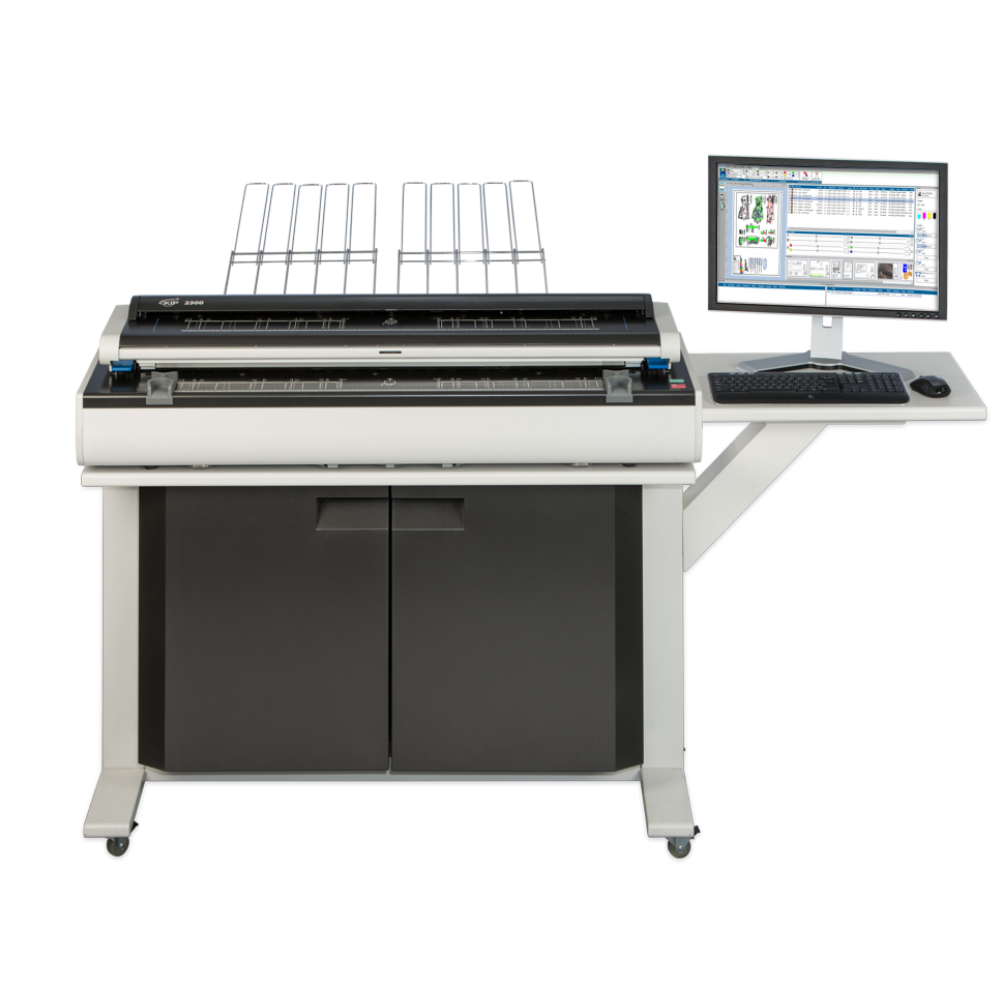

KIP 2300 CCD Scanner includes System K Image

KIP 2300 CCD Scanner includes System K Image

Regular price $17,881.00 USD
Regular price Sale price $17,881.00 USD
Sale Sold out

The KIP 2300 high productivity scanner sets a uniquely high standard for speed; quality and flexibility in a digital image capture system. It delivers outstanding image quality through its 600 x 600 dpi image capture resolution.

  • Preset scan modes – standard or production
  • White LED original illumination system
  • Mono scan speeds up to 60 feet / 18 meters per minute
  • Color scan speeds up to 30 feet / 9 meters per minute
          View full details

          Product Specifications

          KIP 2300 CCD Scanner includes System K Image

          Product Description

          The KIP 2300 high productivity scanner sets a uniquely high standard for speed, quality and flexibility in a digital image capture system. It supports both monochrome and color scan-to-file and copy to satisfy most application needs. This unit serves as a high speed scan solution that provides world-class workflow flexibility through its ability to scan face up or face down and scan thick mounted originals and loose sheets of paper
          from a single unit.

          General

          SCANNER TYPE
          C.C.D. with Super-Speed USB3 Technology and KIP RTT Technology

          MINIMUM PC REQUIREMENTS (Not Included with Scanner)
          Quad Core Proessor (Such as an Intel i5 or higher)
          Windows 10
          8GB RAM
          1TB Hard Drive
          1 Gig RJ45 LAN Port
          One USB 3.0 Port (scanner connection)
          27" Wide Screen Flat Panel Monitor
          USB keyboard and mouse

          INTERFACE
          USB 3.0, Super-Speed USB3 Technology (5 GB per sec data transfer)

          DIMENSION
          55” W x 21” D x 11” H / 1,399 mm W, 480 mm D, 310 mm H

          WEIGHT
          160 lbs

          ELECTRICAL REQUIREMENTS
          100-240V AC 50/60 Hz

          POWER CONSUMPTION
          <120 W

          Paper Handling

          ORIGINAL SIZE WIDTH/LENGTH
          Originals Up to 42" - 36" / 1,066 mm - 914 mm Scan width

          ORIGINAL THICKNESS
          Up to .6" / 16 mm Automatic thickness detection

          ORIGINAL FACE UP/FACE DOWN
          Both - Dual Original Feed Tables

          Scanner

          SCAN RESOLUTION
          600 x 600 dpi optical resolution

          SCAN SPEED
          Up to 12 ips / 305 mm per second (B&W)
          Up to 6 ips / 152 mm per second (Color)

          SCAN FORMAT
          TIFF, Multipage TIFF, PDF, PDF-A, Multipage PDF, DWF, Multipage DWF, JPEG, CALS

          SCAN DESTINATION
          Local USB (Removable Media), Unlimited IPS Mailboxes (Local), Unlimited FTP, Unlimited SMB
